Low Carbon 304L Stainless Steel Angle Easy To Weld

EDEST STEEL CO.,LTD
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

Low Carbon 304L Stainless Steel Angle Easy To Weld

Brand Name : EDEST STEEL

Model Number : 304 angle

Certification : ISO,PE, MTC BV SGS

Place of Origin : China

MOQ : 1ton

Price : $1030-$1480 /Ton

Payment Terms : L/C, T/T

Supply Ability : 5000 Ton/Tons per Month

Delivery Time : 3-5 work days

Packaging Details : Waterproof and rust-proof seaworthy packaged goods according to customer requirements

Angle Bar : 20x20x2mm - 200x200x20mm

Standard : AiSi, ASTM, DIN, GB, JIS

Grades : 201 / 304 / 316 / 316L / 321 / 310S

Tickness : 3mm-24mm Or Customized

Type : Equal

Key World : Angle Steel ,H Beam,U Channel C Channel

Processing Service : Bending, Welding, Decoiling, Punching, Cutting

Grade : 300 Series

Application : Building structure

Surface Finish : Pickling,Hair line,etc

Model No : Stainless Steel angle

Shape : Angle

Technique : Hot Rolled

Material : Stainless Steel

Contact Now

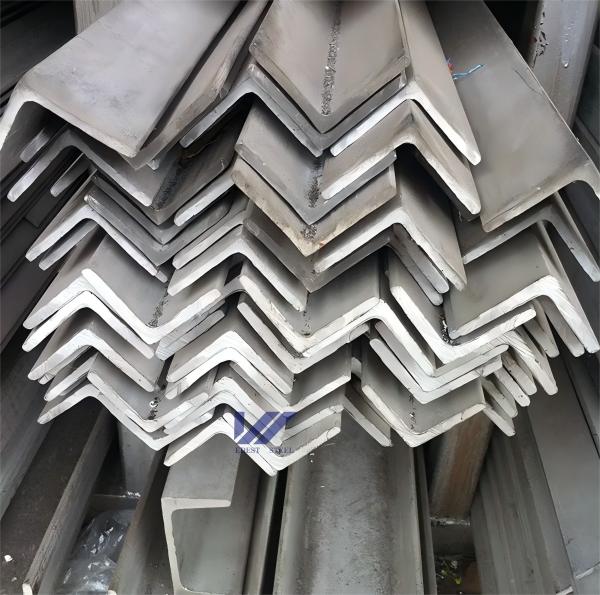

Low carbon 304L stainless steel angle, easy to weld

Product description:

Side length size:
The side length size of 304L stainless steel angle steel usually has a variety of specifications, the common ones are 25mm×25mm, 30mm×30mm, 40mm×40mm, 50mm×50mm, 60mm×60mm, 75mm×75mm, 90mm×90mm, etc.
Different side length sizes are suitable for different engineering needs, and can be selected according to actual conditions.

Thickness:
The thickness is generally between 3mm and 10mm, and special thickness can also be customized according to customer requirements. Thicker angle steel is suitable for structures with larger loads, while thinner angle steel can be used for some light structures or decorative purposes.

Length:
The standard length is generally 6 meters, but it can also be cut according to customer needs to provide products of different lengths.

Corrosion resistance:

304L stainless steel angle steel has good corrosion resistance and can remain stable in atmospheric environment, most organic acids, inorganic acids, alkalis, salts and other media. This is due to the chromium, nickel and other elements it contains, which form a dense oxide film on the surface of the material to prevent further corrosion.
Especially in highly corrosive occasions such as marine environment and chemical industry, 304L stainless steel angle steel shows excellent corrosion resistance and can effectively extend its service life.

Low Carbon Content:

The “L” stands for low carbon, and 304L stainless steel has a low carbon content. This makes it less susceptible to intergranular corrosion during hot working processes such as welding. Intergranular corrosion is a corrosion phenomenon that occurs at the boundaries of metal grains under certain conditions and can seriously affect the strength and service life of the material.

The low carbon content also improves the material's machinability and welding properties, making it easier to perform various processing operations.

Good mechanical properties:

304L stainless steel angle steel has high strength and hardness, and can withstand certain loads and pressures. At the same time, it also has good toughness and ductility, is not easy to break when subjected to external forces, and can be processed by bending, stamping and other operations.
Its mechanical properties can also remain relatively stable under different temperature conditions, and is suitable for various working environments.

304 stainless steel angle stock size table

Models Size Grade
2# 20×20×3 201/304/316
3# 25×25×3 201/304/316
4# 30×30×3/4 201/304/316
5# 40×40×3/4 201/304/316
6# 50×50×3/4/5 201/304/316
7# 60×60×5/6/8/10 201/304/316
8# 70×70×6/8/10 201/304/316
9# 80×80×6/8/10 201/304/316
10# 100×100×6/8/10 201/304/316
11# 120×120×8/10/12 201/304/316
12# 150×150×10/12 201/304/316
13# 200×200×10/12 201/304/316
14# 250×250×10/12 201/304/316

Chemical composition table of stainless steel angle

Grade Chemical Composition (%)
C Si Mn P S Ni Cr Mo
201 ≤0.15 ≤1.00 5.5~7.5 ≤0.060 ≤0.030 3.50~5.50 16.00~18.00
301 ≤0.15 ≤1.00 ≤2.00 ≤0.045 ≤0.030 6.00~8.00 16.00~18.00
302 ≤0.15 ≤1.00 ≤2.00 ≤0.045 ≤0.030 8.00~10.00 17.00~19.00
304 ≤0.08 ≤1.00 ≤2.00 ≤0.045 ≤0.030 8.00~10.50 18.00~20.00 -
304L ≤0.030 ≤1.00 ≤2.00 ≤0.045 ≤0.030 9.00~13.50 18.00~20.00 -
316 ≤0.045 ≤1.00 ≤2.00 ≤0.045 ≤0.030 10.00~14.00 10.00~18.00 2.00~3.00
316L ≤0.030 ≤1.00 ≤2.00 ≤0.045 ≤0.030 12.00~15.00 16.00~18.00 2.00~3.00
Low Carbon 304L Stainless Steel Angle Easy To Weld

Manufacturing capacity

EDEST STEEL have more than ten years stainless steel products exporting experience, with full range of product lines, including stainless steel bars, profiles, pipes and tubes, stainless steel strips and sheets etc. We have rofessional sales and service teams with our own processing center, enough inventory to make sure fast delivery, products can also be customized. We're aiming to provide customer a One-stop service.

Our commitment

our price may not be the lowest, but we adhere to the "quality first, service first" Our price is reasonable, we will be your most satisfied supplier in China

If you have any questions, please feel free to contact us! We are committed to providing you with the best products at the most reasonable prices, always providing our best service.

Low Carbon 304L Stainless Steel Angle Easy To Weld
